Nuclear and Genome Organization in Development and Cancer

Normal somatic cells have highly compartmentalized nuclear structure


The functional complexity of the nucleus is reflected in its remarkable structural complexity. As seen in the image to the right, in addition to DNA, the somatic cell nucleus is comprised of a number of different domains and nuclear bodies, such as nucleoli and SC-35 speckles, which are involved in distinct aspects of gene expression. These non-membrane bound compartments form by liquid phase separation, allowing molecules within the relatively stable structures to remain dynamic. Many of these nuclear compartments contain unique noncoding RNAs and often are associated with specific gene loci

Take a closer look at the structure of the cell nucleus


Nuclear Speckles (SC-35 Domains)

Nuclear speckles, also referred to as SC-35 domains, are nuclear structures that are enriched with factors involved in transcription, RNA processing and export, as well as ncRNAS such snRNAs and the lncRNA MALAT1 (also called NEAT2). Specific genes localize at the edge of speckles, and the concept that they are hubs for transcription, mRNA processing and export has been suggested by our lab since the mid-1990s. Now, genome wide studies have found that active genes throughout the genome associate with speckles.

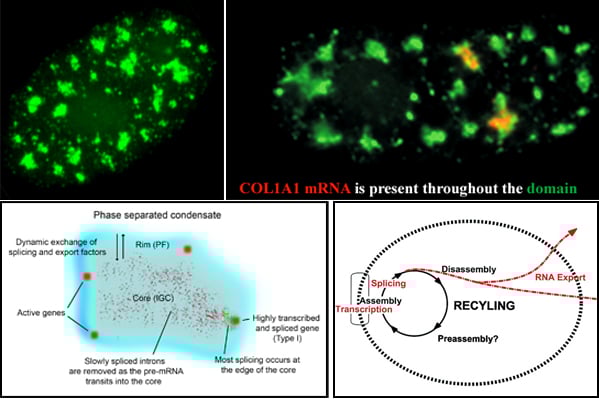

Speckles (top left image) are membraneless condensates that facilitate expression of associated genes through increased concentration and dynamic exchange of factors involved in mRNA metabolism. Top right image: Some speckles have Col1A1 RNA throutout them. Lower left model: Many active genes (red) position in the rim (blue region), which corresponds to perichromatin fibril (PF) ultrastructures, where transcription occurs, but are adjacent to the speckle core (corresponding to interchromatin granule cluster (IGC) ultrastructures), which contains transcription, splicing and export factors. All or almost all introns (green) are removed within the periphery at or near the gene, while some introns can be such as slow splicing introns of COL1A1 mRNA (punctate red signals) distribute throughout the core. Highly expressed, intron-rich genes such as Col1A1 always associate with speckles and their nascent mRNAs can be found within the speckle. We propose that these high demand genes nucleate formation of speckles with which other genes then associate to facilitate their own expression.Lower right: Model suggesting a functional rationale for coupling the completion of mRNA maturation and release for mRNA export with the recycling/preassembly of factors within speckles. Since pre-mRNA processing requires interaction of many different factors, their concentration in condensates would facilitate recycling and reuse for expression of adjacent genes.

Selected Lawrence lab publications about SC-35 speckles:

Nuclear hubs built on RNAs and clustered organization of the genome. Curr Opin Cell Biol. 2020 Apr 4;64:67-76.

Molecular anatomy of a speckle. Anat Rec A Discov Mol Cell Evol Biol. 2006 Jul;288(7):664-75.

Defining early steps in mRNA transport: mutant mRNA in myotonic dystrophy type I is blocked at entry into SC-35 domains. J Cell Biol. 2007 Sep 10;178(6):951-64.

Clustering of multiple specific genes and gene-rich R-bands around SC-35 domains: evidence for local euchromatic neighborhoods. J Cell Biol. 2003 Sep 15;162(6):981-90.

Evidence that all SC-35 domains contain mRNAs and that transcripts can be structurally constrained within these domains. J Struct Biol. 2002 Oct-Dec;140(1-3):131-9.

Tracking COL1A1 RNA in osteogenesis imperfecta. splice-defective transcripts initiate transport from the gene but are retained within the SC35 domain. J Cell Biol. 2000 Aug 7;150(3):417-32.

Processing of endogenous pre-mRNAs in association with SC-35 domains is gene specific. J Cell Biol. 1999 Feb 22;144(4):617-29.

A three-dimensional view of precursor messenger RNA metabolism within the mammalian nucleus. Science. 1993 Feb 26;259(5099):1330-5.

NEAT1 RNA is an architectural RNA that scaffolds a large nuclear structure

NEAT1 RNA is a noncoding RNA that strictly localizes in paraspeckles, ubiquitous nuclear structures (~10-30/nucleus) which abut the larger nuclear speckles, and provides the essential architectural scaffold for their formation. Paraspeckles can be found in all human primary and transformed cells and are enriched for over 40 different RNA binding proteins, such as PSP1. Paraspeckles are thought to sequester nuclear-retained RNAs and proteins involved in gene regulation or pri-miRNA processing.

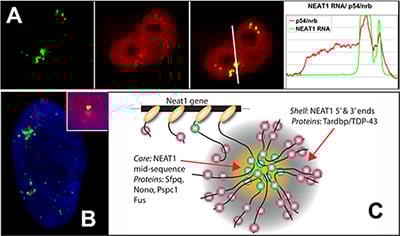

A) Many broadly distributed proteins become enriched in paraspeckles (e.g. P54/nrb, red), but the NEAT1 RNA (green) is exclusively found in these bodies. B)  NEAT1 RNA (green) forms bodies as the RNA is transcribed from the locus (red, marked by the UHG locus at 11q13). Insert shows paraspeckles, enriched for PSP1 protein (red), emanate from the NEAT1 locus (green) in early G1 daughter cells. C) Model shows NEAT1 RNA building a phase separated paraspeckle coincident with transcription. The middle of the long transcript binds specific RBPs that form the inner core and are distinct from those that bind the 3’ and 5’ ends to form the outer shell.



An architectural role for a nuclear noncoding RNA: NEAT1 RNA is essential for the structure of paraspeckles. Mol Cell. 2009 Mar 27;33(6):717-26.

A screen for nuclear transcripts identifies two linked noncoding RNAs associated with SC35 splicing domains. BMC Genomics. 2007 Feb 1;8:39.

Pluripotent stem cells have a unique nuclear organization

The complex nuclear structure of somatic cells is a key component of epigenomic regulation, yet little is known about nuclear structure and genomic organization of pluripotent cells (e.g. hESC). Here we surveyed several nuclear structures in pluripotent and transitioning hESC. We find hESC have unique nuclear organization and lack numerous defined structural compartments seen in somatic cells. They also exhibit dramatically different PML-defined structures, which in somatic cells are linked to gene regulation and cancer.



Changing nuclear landscape and unique PML structures during early epigenetic transitions of human embryonic stem cells. J Cell Biochem. 2009 Jul 1;107(4):609-21.

Cancer cells lose the peripheral heterochromatic compartment

Most normal somatic cells (left panel) have a large region of silent heterochromatin located around the periphery of the nucleus and around the nucleolus. Many cancer cells (right panel) appear to lose this compartment, suggesting inappropriate reactivation of silenced heterochromatin.



BRCA1 does not paint the inactive X to localize XIST RNA but may contribute to broad changes in cancer that impact XIST and Xi heterochromatin. J Cell Biochem. 2007 Mar 1;100(4):835-50.

BRCA1 associates with centromeric satellite DNA during its replication

Proper replication of centromeric DNA is essential to ensure appropriate segregation of chromosomes at mitosis. The link between BRCA1 and centromeric replication could connect BRCA1 to both epigenetic and genetic instability in cancers. We suggest that heterochromatic instability is a common but largely unexplored mechanism, leading to widespread genomic misregulation and the evolution of some cancers.

3D-image-composite BRCA

We examined the relationship between BRCA1 and the minor satellite (equivalent of human α satellite) of mouse centromeres. When viewed with DAPI in three colors, minor satellite (green) and BRCA1 signals (red) that had no direct contact were often associated with a common chromocenter (blue). Even when the BRCA1 foci are not coincident with a centromeric marker, they are spatially linked by their common association with the pericentric heterochromatin (PCH) of the chromocenter. Results indicate a connection between the discrete BRCA1 S-phase foci and centromeres, which are structures key to the proper segregation of chromosomes and maintenance of genomic integrity.


BRCA1 foci in normal S-phase nuclei are linked to interphase centromeres and replication of pericentric heterochromatin. J Cell Biol. 2006 Dec 4;175(5):693-701.
